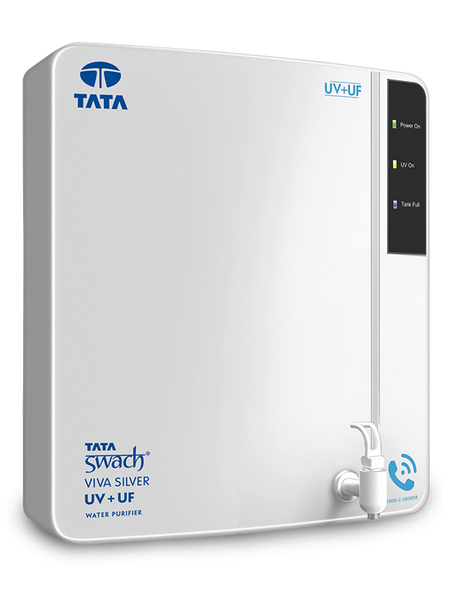

TATA SWACH
Viva Silver UV+UF
Special features:
-
Silver Action Inside -
4 stage purification -
Sleek design for your modern kitchen -
User-friendly indicators -
Screwless front panel opening
Tata Swach Viva Silver UV+UF provides double protection of UV and UF from Bacteria and Viruses to give you and your family assured safe drinking water. It comes with a storage capacity of 6 litres.
Special Features
-
Silver Action Inside -
Double protection of UV and UF from Bacteria, Viruses and Cysts -
4 stage purification -
6 litres Concealed Storage Tank Saves you from the hassle of cleaning the tank -
Sleek design for your modern kitchen -
User-friendly indicators -
Warranty: 1 year on product -
Screwless front panel opening
Technical Specification
| Purification Capacity | Up to 30 L/hr** |
| Body Material | ABS |
| Type | Wall Mounted |
| Inlet Water Pressure | Minimum - 5 psi, Maximum - 35 psi |
| Stages | Sediment, Pre-Carbon, UV Lamp, UF Membrane |
| Tank Volume | 6 Litres |
| Power Consumption | 22 W |
| UV Lamp | 11 W |
| UF Membrane | 0.01 micron |
Purification Stage
Stage 1 : Sediment Filter Cartridge
This is the first filtration process which reduces/removes impurities from the inlet water. These impurities may be particles such as dust and sediments which are above 10 micron in size.
Stage 2 : Bacteriostatic Granular Activated Carbon (GAC) with Silver Impregnation technology
This GAC Cartridge reduces chlorine, bad taste and odour from the inlet water. It also reduces volatile organic compounds and pesticides from water. The silver impregnation technology used in this cartridge ensures improved bacteriostatic performance for the entire life of the carbon capacity. This Silver Action Inside of the bacteriostatic GAC greatly reduces the chance of bio-fouling.
Stage 3 : Ultra Violet Purification
The UV module safeguards against the microbiological impurities that can be present in the water. Ultraviolet purification deactivates the protozoa, bacteria and viruses by damaging the genetic code which renders them harmless as they cannot reproduce themselves.
Stage 4 : Ultra Filtration Membrane
The UF Membrane protects against bacteria, viruses, pyrogens & collodial matter. The membrane passes only dissolved minerals & salts along with the water molecules passing through.
**As per standard test conditions. 10 psi input pressure and 750 ppm TDS at 250C.Tata Swach Viva Silver UV + UF has tank volume of 6 liters. The process of filling the tank is fully automatic and when you take water out of the tank, the purification process automatically starts and refills the storage tank.
Tata Swach Viva Silver UV + UF can purify water up to 30 L/hr. However time taken to purify water depends upon the life of filters, the input water pressure, TDS and other impurities present in water.
Consumables such as the Sediment Filter cartridge, Silver Impregnated GAC cartridge, UF membrane and UV lamp need periodic replacement depending on service schedule or fault indication as shown on display panel. Please note that the life of the consumables is dependent on the input water quality.
In case there is no purified water in the tank, please call Tata Swach Toll-free number 1800-2-585858 for change of cartridges or any other assistance required.
It is advised to drain out the stored water if not consumed within two days.
Please call the Tata Swach Toll-free number 1800-2-585858. Our technician will visit your house and guide you on the repairs required. There will be a nominal visiting charge and all replacements shall be on a chargeable basis.
It is not recommended to open and service the purifier yourself. Call our customer care if you face any issue which requires servicing or opening the purifier.
This might be because of one or more of the following reasons:
- Water is stored for too long in the storage tank. Please drain the stored water and fill fresh water.
- The filters/membrane need to be replaced. Call Tata Swach customer care and get them replaced or cleaned.
- The input water quality has changed. This will lead to a sudden change in the output water taste. Please call the Tata Swach customer care to get your purifier checked.
This might be because of one or more of the following reasons:
- The incoming waterline or the KFA is choked because of physical impurities in the incoming water. You can ask your plumber to check if this is the case.
- The temperature of input water might have dipped drastically (this will happen rarely)
- The filters may be choked or the membrane needs replacement
This might be because of one or more of the following reasons:
- Check if the system power is ON.
- Check for any clogging in the incoming water line.
- Check for any clogging in the incoming water line.
